載荷能力 |
 |

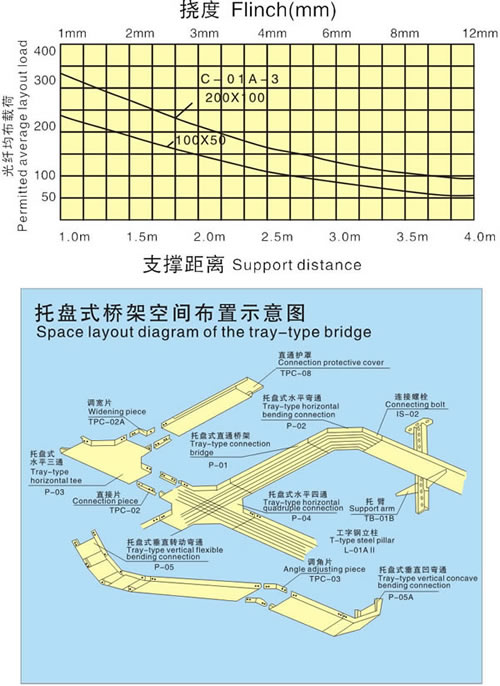

玻璃鋼槽式電纜橋架在不同跨距下最大允許均布載荷曲線圖。
The maximum permitted average layout load curve chart for the glass steel slot-type cable bridge at the different span.
|

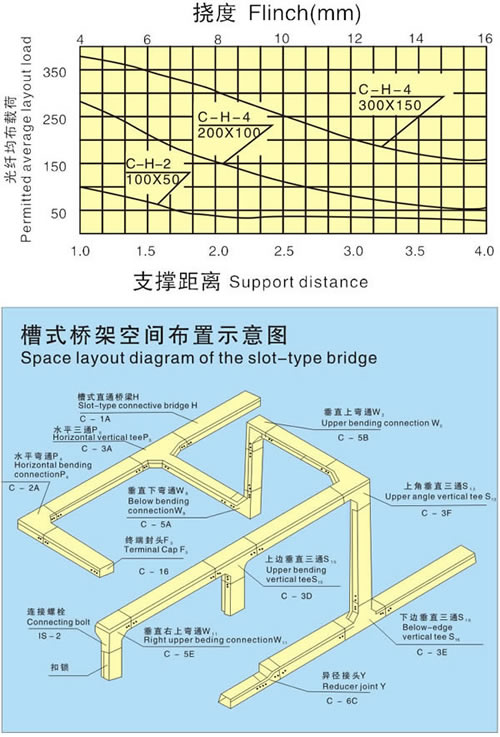

槽式鋼制電纜橋架在不同跨距下最大允許均布載荷曲線圖。
The maximum permitted average layout load curve chart for the steel slot-type cable bridge at the different span.
|

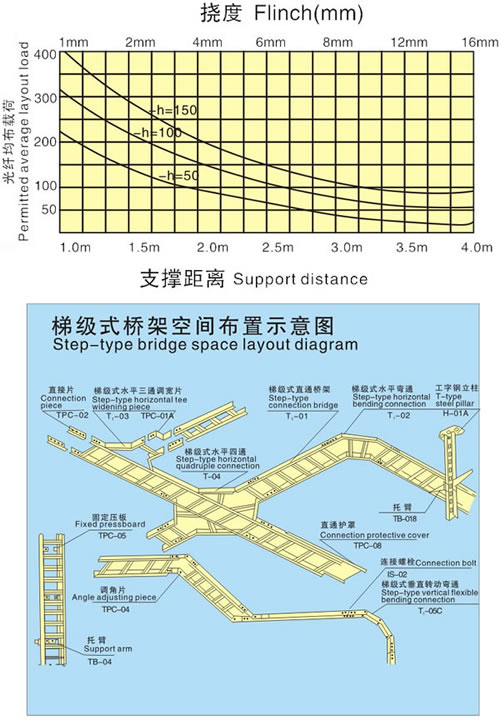

梯級式鋼制電纜橋架在不同跨距下最大允許均布載荷曲線圖。
The maximum permitted average layout load curve chart for the steel step-type cable bridge at the different span.
|
 |
安裝與維護 |
1、橋架高度為50、100時每端各6只連接子L，高度為150,200時每端各12只連接孔。
2、支撐間距：支撐間距應小于等于載荷曲線允許載荷和支撐跨距。
3、橋架寬度：選擇電纜橋架的寬度時，應留有一定的備用空位，以便為今后增添電纜用。
4、隔開敷設：當電力電纜和控制電纜較少時，可以在同一電纜橋架安裝，但中間須用隔板將電力電纜和控制電纜隔開敷設。
5、電纜固定：匯線橋架水平敷設時，橋架之間的連接應盡量設置在跨距1/4處。水平走向的電纜每隔2米左右固定一下，垂直走向的電纜每隔1.5米左右固定一下。
|
|
Installtin & Maintenance |
1.The heiqhl of cable bridge is 50 and 100 and there are 6 connecting holes at both ends;and heihth 150 and 200,12holes.
2.Spacing Distance of Supporting：The spacing distance and load should be equal to or less than the span and the load
allowed by the Load curve．
3.Width of cable bridge：When choosing the width of cable bridge,there should keep some of reserve space for additional
cables in future．
4．Separati re Laying：When the little amount of power cable and control cable are used,they can be together installed in
the same bracket．but the separatinq wall must be used between them．
5．Fixation of Cable：When the cable bridges are horizontally laid．the connection between frames should be possibly set
up within 1/4 of a span,And a fixation should be made every 2 meters on the horizontal run cable,but every 1.5m on the
vertical run cable.
|
|
|
|
